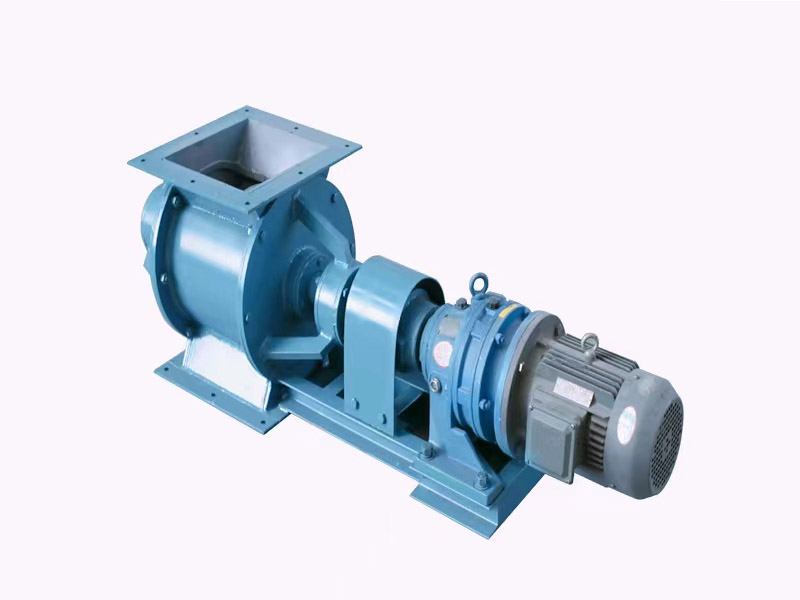

Rotary blanking valve
Product brief introduction
brief introduction The rotary blanking valve is driven by an electric motor to drive the impeller evenly. It has simple structure, small volume, uniform feeding, and can realize quantitative feeding. purpose Most of them are used in the negative pressure system to feed and achieve the effect of locking the wind.
Product brief introduction
brief introduction The rotary blanking valve is driven by an electric motor to drive the impeller evenly. It has simple structure, small volume, uniform feeding, and can realize quantitative feeding. purpose Most of them are used in the negative pressure system to feed and achieve the effect of locking the wind.
- 1
- 2
- 3
- 4
Technical parameters
brief introduction
The rotary blanking valve is driven by an electric motor to drive the impeller evenly. It has simple structure, small volume, uniform feeding, and can realize quantitative feeding.
purpose
Most of them are used in the negative pressure system to feed and achieve the effect of locking the wind.
|
型号 |
HF2020 |
HF3030 |
HF3040 |
HF4040 |
HF4050 |
HF5050 |
||||||
|
叶轮直径 /mm |
Φ200 |
Φ300 |
Φ400 |
Φ500 |
||||||||
|
叶轮长度 /mm |
200 |
300 |
400 |
500
|
||||||||
|
转速r /mm |
45 |
40 |
35 |
30 |
||||||||
|
处理能力 Kg/h |
3-5 |
8-10 |
10-15 |
15-20 |
20-25 |
30-40 |
||||||
|
功率 Kw |
1.85 |
2.2 |
3 |
4 |
5.5 |
|||||||
