Product brief introduction

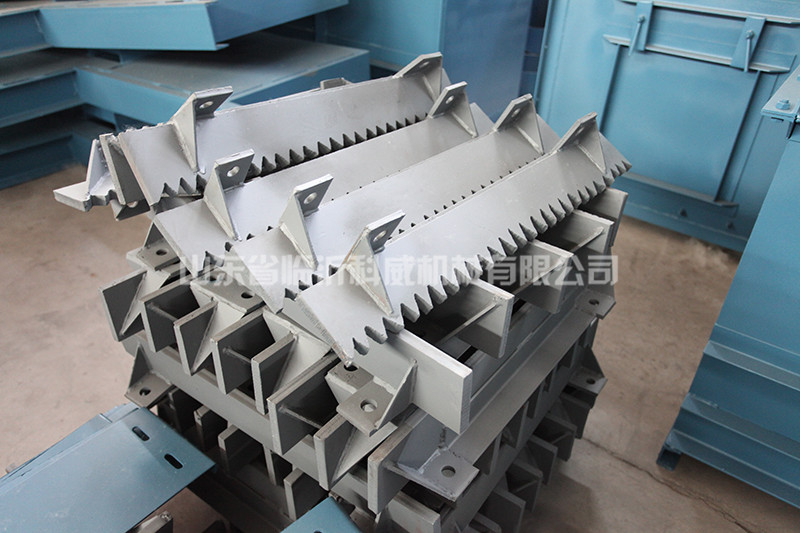

The KS type scraper conveyer is in the enclosed rectangular shell, which drives the high strength scraper continuously through the unend chain of the motion to reach the transportation equipment for conveying the material purpose. The machine is fully sealed. Low dust concentration can improve working environment; Scraper is wear - resistant steel plate, wear - resistant high - temperature performance, small vibration, long service life. Moreover, the design is novel and reasonable, simple in structure, easy to install and repair, low noise, and can feed and unload more.

1
2
3
4

Technical parameters

The KS type scraper conveyer is in the enclosed rectangular shell, which drives the high strength scraper continuously through the unend chain of the motion to reach the transportation equipment for conveying the material purpose. The machine is fully sealed. Low dust concentration can improve working environment; Scraper is wear - resistant steel plate, wear - resistant high - temperature performance, small vibration, long service life. Moreover, the design is novel and reasonable, simple in structure, easy to install and repair, low noise, and can feed and unload more.

型号	生产能力t/h	输送距离m	电机功率kw	允许输送物料粒度mm	允许输送物料温度℃	允许输送物料硬度	扬尘浓度mg/m3	输送速度m/s	设备重量kg
									头节	中间节	尾节
KS300	15-20	5-20(含20)	5.5	5-40	≤300	≤8级(莫式)	≤6	0.29-0.5	425	213	410
		20-30	7.5
KS400	20-45	5-20(含20)	7.5	5-40					653	262	430
		20-30	11
KS500	25-50	5-20(含20)	7.5	5-40					677	323	544
		20-30	11
KS630	30-70	5-20(含20)	11	5-45					730	420	598
		20-30	15
KS800	40-80	5-20(含20)	18.5	5-65					900	500	700
		20-30	22
KS1000	60-120	5-20(含20)	18.5	5-65					1100	550	1000
		20-30	22
