MS buried scraper conveyor
Product brief introduction

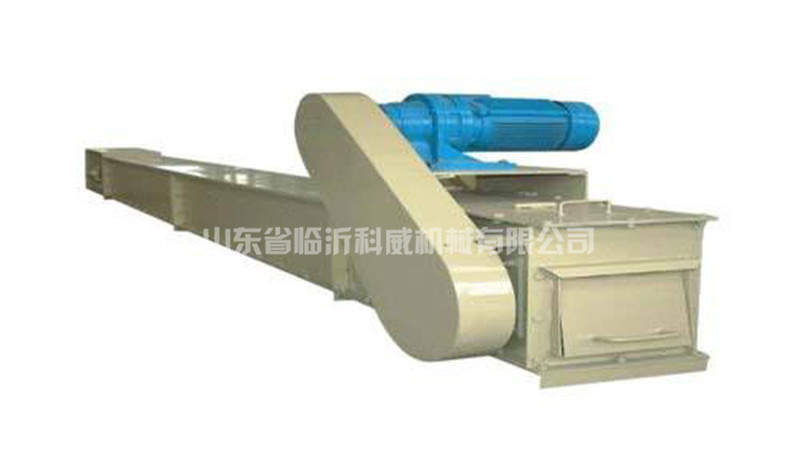

The buried scraper conveyor is a kind of continuous transport equipment with the help of the moving scraper chain in the closed giant section shell. As the material is conveyed, the scraper chain is all buried in the material, so it is called the buried scraper conveyor. The machine is simple in structure, good in sealing, convenient in installation and maintenance and flexible in process layout; it can not only be conveyed horizontally, but also can be conveyed vertically or vertically; it can be used in single machine and can be used in combination with multiple units. Because the shell is closed, it can significantly improve workers' working environment and prevent environmental pollution when transporting large, toxic, explosive and high temperature materials.
Product brief introduction
The buried scraper conveyor is a kind of continuous transport equipment with the help of the moving scraper chain in the closed giant section shell. As the material is conveyed, the scraper chain is all buried in the material, so it is called the buried scraper conveyor. The machine is simple in structure, good in sealing, convenient in installation and maintenance and flexible in process layout; it can not only be conveyed horizontally, but also can be conveyed vertically or vertically; it can be used in single machine and can be used in combination with multiple units. Because the shell is closed, it can significantly improve workers' working environment and prevent environmental pollution when transporting large, toxic, explosive and high temperature materials.
- 1
- 2
- 3
- 4
Technical parameters
The buried scraper conveyor is a kind of continuous transport equipment with the help of the moving scraper chain in the closed giant section shell. As the material is conveyed, the scraper chain is all buried in the material, so it is called the buried scraper conveyor. The machine is simple in structure, good in sealing, convenient in installation and maintenance and flexible in process layout; it can not only be conveyed horizontally, but also can be conveyed vertically or vertically; it can be used in single machine and can be used in combination with multiple units. Because the shell is closed, it can significantly improve workers' working environment and prevent environmental pollution when transporting large, toxic, explosive and high temperature materials.
|
型号 |
输送速度（m/s） |
输送量（m3/h） |
输送长度L0（m） |
电机功率（kw） |
|
MS16 |
0.4-0.5 |
2-10 |
3-80 |
0.27-11 |
|
MS20 |
0.4-0.5 |
10-15 |
3-80 |
0.4-15 |
|
MS25 |
0.4-0.5 |
15-20 |
3-80 |
0.6-18.5 |
|
MS32 |
0.4-0.5 |
20-30 |
3-80 |
1.5-30 |
|
MS40 |
0.4-0.5 |
30-40 |
3-80 |
1.5-37 |
|
MS50 |
0.4-0.5 |
40-50 |
5-80 |
2.2-55 |
|
MS63 |
0.4-0.5 |
50-60 |
5-80 |
3-75 |
|
MS80 |
0.4-0.5 |
60-80 |
5-80 |
7.5-75 |
|
MS100 |
0.4-0.5 |
80-100 |
5-80 |
11-75 |
